PSS-420-1

Click image to enlarge
0.000
Quantity:

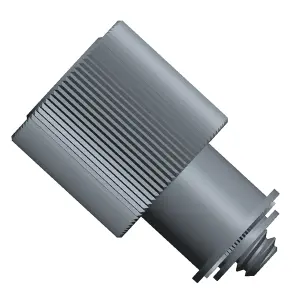

Shoulder Base Panel Fastener, Smooth Head, Aluminum Knob, Steel Base, Stainless Screw, #1/4-20 x 1

PSS-420-1 Specifications

  • Type: Unified, Smooth Head
  • Thread Size: 1/4-20
  • Material: Aluminum Knob, Steel Base, Stainless Screw
  • Sheet Min.: 0.036
  • Hole Diameter: 0.375 +0.003 -0.000
  • A1 Nom.: 0.530
  • A2 Nom.: 0.790
  • C Max.: 0.374
  • D: 0.575 ±0.010
  • G: 0.350 ±0.025
  • P: 0.060 ±0.025
  • T Max.: 0.036
  • CL to Edge Min.: 0.46
  • CRS Installation Force: 5000 lbs
  • CRS Push Out: 195 lbs
  • 5052 H34 Aluminum Installation Force: 3500 lbs
  • 5052 H34 Aluminum Push Out: 105 lbs
