CPFK440-84

Click image to enlarge
0.000
Quantity:

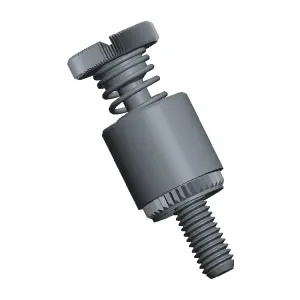

Panel Fastener, Broaching, 300 Series Stainless Steel, Passivated, #4-40 x 0.5

CPFK440-84 Specifications

  • Type: Unified
  • Thread Size: #4-40
  • Material: Stainless Steel, 300 Series
  • Finish: Passivated
  • Sheet Min.: 0.060
  • Hole Diameter: 0.265 +0.003 -0.000
  • A Max.: 0.360
  • B: 0.280 ±0.010
  • C: 0.283 ±0.003
  • D: 0.312 ±0.010
  • G: 0.500 ±0.016
  • L: 0.190 ±0.016
  • P: 0.250 ±0.025
  • Y: 0.072 ±0.005
  • CL to Edge Min.: 0.20
  • .060in Fiberglass Installation Force: 250 lbs.
  • .060in Fiberglass Push Out: 55 lbs.
