CKFB3440-10

Click image to enlarge
0.000
Quantity:

Standoff, Flare Mounted, Brass CDA-360, Electro Tin, #4-40 x 0.3125
CKFB3

CKFB3440-10 Specifications

  • Type: Unified
  • Thread Size: #4-40
  • Material: Brass, CDA-360
  • Finish: Electro Tin
  • Sheet Min.: 0.050
  • Hole Diameter: 0.166 +0.003 -0.000

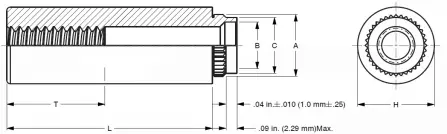

  • A: 0.179 ±0.003
  • B: 0.122 ±0.003
  • C Max.: 0.165
  • H: 0.219 ±0.005
  • L: 0.312 ±0.005
  • T: FULL
  • CL to Edge Min.: 0.17
  • .060in Fiberglass Installation Force: 1000 lbs.
  • .060in Fiberglass Push Out: 140 lbs.
  • .060in Fiberglass Torque Out: 18 in-lbs.
