CKF2632

Click image to enlarge
0.000
Quantity:

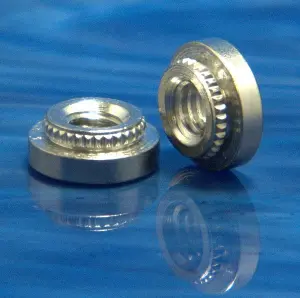

Nut, Broaching, Steel, Electro Tin, #6-32

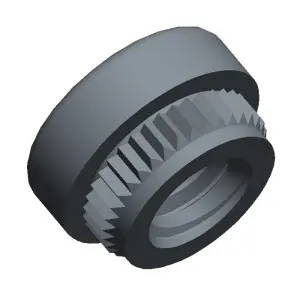

CKF2_CKFS2 2D

CKF2632 Specifications

  • Type: Unified
  • Thread Size: #6-32
  • Material: Steel
  • Finish: Electro Tin
  • Sheet Min.: 0.060
  • Hole Diameter: 0.213 +0.003 -0.000
  • A: 0.231 ±0.003
  • B: 0.281 ±0.005
  • C: 0.065 ±0.005
  • CL to Edge Min.: 0.22
  • .060in Fiberglass Installation Force: 500 lbs.
  • .060in Fiberglass Push Out: 80 lbs.
  • .060in Fiberglass Torque Out: 30 in-lbs.
