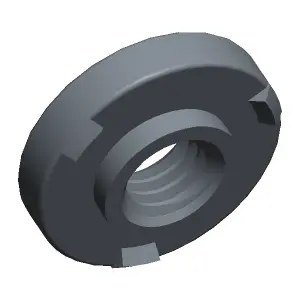

CFWNSM4

CFWNSM4 Specifications

• Type: Metric
• Thread Size: M4 x 0.7
• Material: Stainless Steel, 300 Series
• Finish: Passivated
• Sheet Min.: 0.770
• Hole Diameter: 5.53 +0.10 -0.00
• A Max.: 5.50
• B Max.: 0.77
• C: 2.58 ±0.10
• D: 9.42 +0.00 -0.25
• CL to Edge Min.: 4.71
• 1.500mm CRS Push Out: N/A
• 1.500mm CRS Torque Out: N/A
• 1.500mm 300 Series Stainless Steel Push Out: 3780 N
• 1.500mm 300 Series Stainless Steel Torque Out: 5.0 N-m
