CFN2632-1

Click image to enlarge
0.000
Quantity:

Panel Screw Component, Steel, Zinc, #6-32 x 1

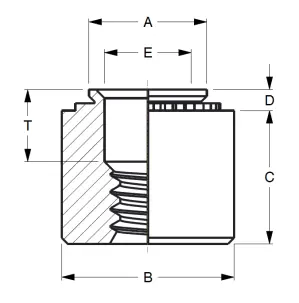

CFN2 2D

CFN2632-1 Specifications

  • Type: Unified
  • Thread Size: #6-32
  • Material: Steel, Heat Treated
  • Finish: Clear
  • Sheet Min.: 0.040
  • Hole Diameter: 0.213 +0.003 -0.000
  • A Max.: 0.212
  • B Nom.: 0.31
  • C: 0.240 ±0.005
  • D Max.: 0.038
  • E Nom.: 0.156
  • T: 0.130 ±0.010
  • CL to Edge Min.: 0.27
