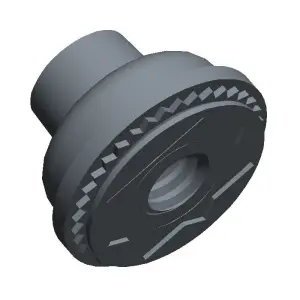

CFFC440-2ML

Click image to enlarge
0.000
Quantity:

Nut, Floating-Locking, 300 Series Stainless Steel, Passivated, #4-40 x 2
cffs_cffc 2D

CFFC440-2ML Specifications

  • Type: Unified
  • Thread Size: #4-40
  • Material: Stainless Body Stainless Nut
  • Finish: Passivated
  • Sheet Min.: 0.054
  • Hole Diameter: 0.290 +0.0030-0.000
  • A Max.: 0.289
  • B: 0.360 ±0.015
  • C Max.: 0.13
  • D Max.: 0.054
  • E Max.: 0.290
  • Nut Material: 300 Series Stainless Steel
  • Nut Finish: Black Dry Film Lubricant
  • CL to Edge Min.: 0.30
  • CRS Installation Force: 3000 lbs
  • CRS Push Out: 300 lbs
  • CRS Torque Out: 150 in-lbs
  • 2024 T3 Installation Force: 3000 lbs
  • 2024 T3 Push Out: 225 lbs
  • 2024 T3 Torque Out: 150 in-lbs
  • 5052 H34 Aluminum Installation Force: 2000 lbs
  • 5052 H34 Aluminum Push Out: 225 lbs
  • 5052 H34 Aluminum Torque Out: 80 in-lbs
