CAM3-1

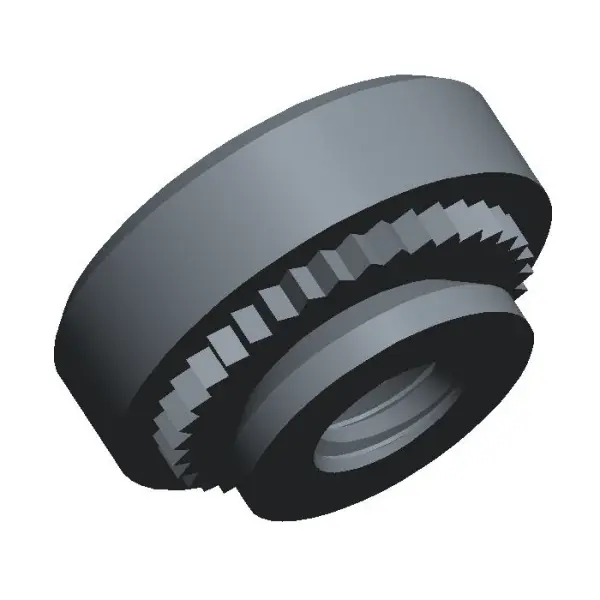

Click image to enlarge
0.000
Quantity:

Nut, Aluminum, 2024-T4 Aluminum, Metric, M3x0.5 x 1
C_CS 2D

CAM3-1 Specifications

  • Type: Metric
  • Thread Size: M3 x 0.5
  • Material: Aluminum, 2024-T4
  • Finish: None
  • Sheet Min.: 1.000
  • Hole Diameter: 4.75 +0.08 -0.00
  • A Max.: 4.73
  • B: 6.35 ±0.25
  • C: 2.00 ±0.25
  • D Max.: 0.98
  • CL to Edge Min.: 5.6
