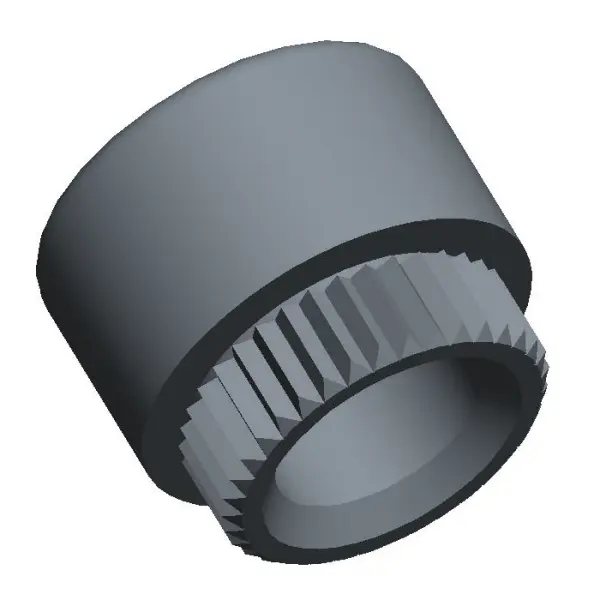

Broaching Standoffs
- Series CKFE, CKFSE

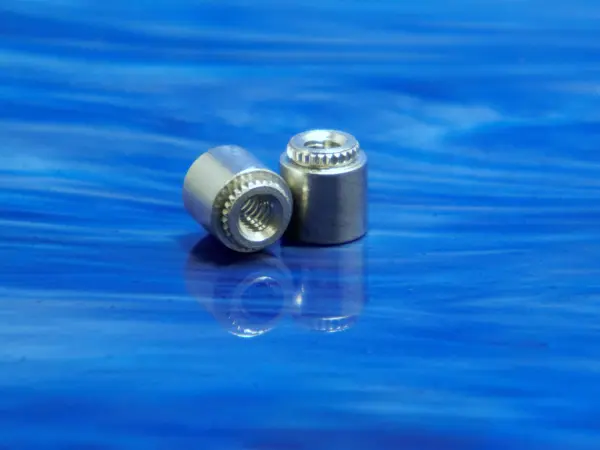

Click image to enlarge
CKFE and CKFSE threaded and non-threaded standoffs allow screws to be inserted through multiple layered boards for stacked assemblies. All fasteners from Captive Fastener are identical to industry standards so that they can be fed through standard automatic insertion equipment.

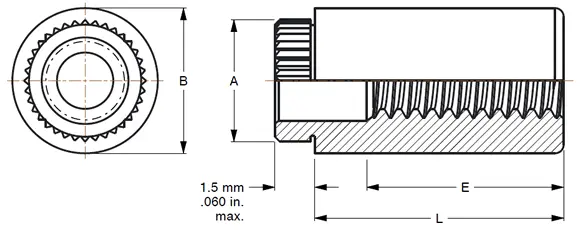

Broaching Standoffs - Series CKFE, CKFSE diagram

Part Number:
Type:
Unified
Thread Size:
#4-40
Material:
Stainless Steel, 300 Series
Finish:
Passivated
Sheet Min.:
0.060
Hole Diameter:
0.166 +0.003 -0.000
A:
0.184 ±0.003
B:
0.219 ±0.005
L:
0.375 ±0.005
CL to Edge Min.:
0.17
E:
FULL
Part Number:
Type:
Unified
Thread Size:
#4-40
Material:
Stainless Steel, 300 Series
Finish:
Passivated
Sheet Min.:
0.060
Hole Diameter:
0.166 +0.003 -0.000
A:
0.184 ±0.003
B:
0.219 ±0.005
L:
0.500 ±0.005
CL to Edge Min.:
0.17
E:
0.375 ±0.016
Part Number:
Type:
Unified
Thread Size:
#4-40
Material:
Stainless Steel, 300 Series
Finish:
Passivated
Sheet Min.:
0.060
Hole Diameter:
0.166 +0.003 -0.000
A:
0.184 ±0.003
B:
0.219 ±0.005
L:
0.625 ±0.005
CL to Edge Min.:
0.17
E:
0.375 ±0.016
Part Number:
Type:
Unified
Thread Size:
#4-40
Material:
Stainless Steel, 300 Series
Finish:
Passivated
Sheet Min.:
0.060
Hole Diameter:
0.166 +0.003 -0.000
A:
0.184 ±0.003
B:
0.219 ±0.005
L:
0.750 ±0.005
CL to Edge Min.:
0.17
E:
0.375 ±0.016
Part Number:
Type:
Unified
Thread Size:
#4-40
Material:
Stainless Steel, 300 Series
Finish:
Passivated
Sheet Min.:
0.060
Hole Diameter:
0.166 +0.003 -0.000
A:
0.184 ±0.003
B:
0.219 ±0.005
L:
0.125 ±0.005
CL to Edge Min.:
0.17
E:
FULL
Part Number:
Type:
Unified
Thread Size:
#4-40
Material:
Stainless Steel, 300 Series
Finish:
Passivated
Sheet Min.:
0.060
Hole Diameter:
0.166 +0.003 -0.000
A:
0.184 ±0.003
B:
0.219 ±0.005
L:
0.250 ±0.005
CL to Edge Min.:
0.17
E:
FULL
Part Number:
Type:
Unified
Thread Size:
#4-40
Material:
Steel
Finish:
Electro Tin
Sheet Min.:
0.060
Hole Diameter:
0.166 +0.003 -0.000
A:
0.184 ±0.003
B:
0.219 ±0.005
L:
0.375 ±0.005
CL to Edge Min.:
0.17
Part Number:
Type:
Unified
Thread Size:
#4-40
Material:
Steel
Finish:
Electro Tin
Sheet Min.:
0.060
Hole Diameter:
0.166 +0.003 -0.000
A:
0.184 ±0.003
B:
0.219 ±0.005
L:
0.500 ±0.005
CL to Edge Min.:
0.17
E:
0.375 ±0.016
Part Number:
Type:
Unified
Thread Size:
#4-40
Material:
Steel
Finish:
Electro Tin
Sheet Min.:
0.060
Hole Diameter:
0.166 +0.003 -0.000
A:
0.184 ±0.003
B:
0.219 ±0.005
L:
0.625 ±0.005
CL to Edge Min.:
0.17
E:
0.375 ±0.016
Part Number:
Type:
Unified
Thread Size:
#4-40
Material:
Steel
Finish:
Electro Tin
Sheet Min.:
0.060
Hole Diameter:
0.166 +0.003 -0.000
A:
0.184 ±0.003
B:
0.219 ±0.005
L:
0.750 ±0.005
CL to Edge Min.:
0.17
E:
0.375 ±0.016
Part Number:
Type:
Unified
Thread Size:
#4-40
Material:
Steel
Finish:
Electro Tin
Sheet Min.:
0.060
Hole Diameter:
0.166 +0.003 -0.000
A:
0.184 ±0.003
B:
0.219 ±0.005
L:
0.125 ±0.005
CL to Edge Min.:
0.17
E:
FULL
Part Number:
Type:
Unified
Thread Size:
#4-40
Material:
Steel
Finish:
Electro Tin
Sheet Min.:
0.060
Hole Diameter:
0.166 +0.003 -0.000
A:
0.184 ±0.003
B:
0.219 ±0.005
L:
0.250 ±0.005
CL to Edge Min.:
0.17
E:
FULL
Part Number:
Type:
Unified
Thread Size:
#6-32
Material:
Steel
Finish:
Electro Tin
Sheet Min.:
0.060
Hole Diameter:
0.213 +0.003 -0.000
A:
0.231 ±0.003
B:
0.281 ±0.005
L:
0.375 ±0.005
CL to Edge Min.:
0.22
Part Number:
Type:
Unified
Thread Size:
#6-32
Material:
Steel
Finish:
Electro Tin
Sheet Min.:
0.060
Hole Diameter:
0.213 +0.003 -0.000
A:
0.231 ±0.003
B:
0.281 ±0.005
L:
0.500 ±0.005
CL to Edge Min.:
0.22
E:
0.375 ±0.016
Part Number:
Type:
Unified
Thread Size:
#6-32
Material:
Steel
Finish:
Electro Tin
Sheet Min.:
0.060
Hole Diameter:
0.213 +0.003 -0.000
A:
0.231 ±0.003
B:
0.281 ±0.005
L:
0.625 ±0.005
CL to Edge Min.:
0.22
E:
0.375 ±0.016
Part Number:
Type:
Unified
Thread Size:
#6-32
Material:
Steel
Finish:
Electro Tin
Sheet Min.:
0.060
Hole Diameter:
0.213 +0.003 -0.000
A:
0.231 ±0.003
B:
0.281 ±0.005
L:
0.750 ±0.005
CL to Edge Min.:
0.22
E:
0.375 ±0.016
Part Number:
Type:
Unified
Thread Size:
#6-32
Material:
Steel
Finish:
Electro Tin
Sheet Min.:
0.060
Hole Diameter:
0.213 +0.003 -0.000
A:
0.231 ±0.003
B:
0.281 ±0.005
L:
0.875 ±0.005
CL to Edge Min.:
0.22
E:
0.375 ±0.016
Part Number:
Type:
Unified
Thread Size:
#6-32
Material:
Steel
Finish:
Electro Tin
Sheet Min.:
0.060
Hole Diameter:
0.213 +0.003 -0.000
A:
0.231 ±0.003
B:
0.281 ±0.005
L:
0.125 ±0.005
CL to Edge Min.:
0.22
E:
FULL
Part Number:
Type:
Unified
Thread Size:
#6-32
Material:
Steel
Finish:
Electro Tin
Sheet Min.:
0.060
Hole Diameter:
0.213 +0.003 -0.000
A:
0.231 ±0.003
B:
0.281 ±0.005
L:
0.250 ±0.005
CL to Edge Min.:
0.22
E:
FULL
Part Number:
Type:
Unified
Thread Size:
#6-32
Material:
Stainless Steel, 300 Series
Finish:
Passivated
Sheet Min.:
0.060
Hole Diameter:
0.213 +0.003 -0.000
A:
0.231 ±0.003
B:
0.281 ±0.005
L:
0.375 ±0.005
CL to Edge Min.:
0.22
E:
FULL
Part Number:
Type:
Unified
Thread Size:
#6-32
Material:
Stainless Steel, 300 Series
Finish:
Passivated
Sheet Min.:
0.060
Hole Diameter:
0.213 +0.003 -0.000
A:
0.231 ±0.003
B:
0.281 ±0.005
L:
0.500 ±0.005
CL to Edge Min.:
0.22
E:
0.375 ±0.016
Part Number:
Type:
Unified
Thread Size:
#6-32
Material:
Stainless Steel, 300 Series
Finish:
Passivated
Sheet Min.:
0.060
Hole Diameter:
0.213 +0.003 -0.000
A:
0.231 ±0.003
B:
0.281 ±0.005
L:
0.625 ±0.005
CL to Edge Min.:
0.22
E:
0.375 ±0.016
Part Number:
Type:
Unified
Thread Size:
#6-32
Material:
Stainless Steel, 300 Series
Finish:
Passivated
Sheet Min.:
0.060
Hole Diameter:
0.213 +0.003 -0.000
A:
0.231 ±0.003
B:
0.281 ±0.005
L:
0.750 ±0.005
CL to Edge Min.:
0.22
E:
0.375 ±0.016
Part Number:
Type:
Unified
Thread Size:
#6-32
Material:
Stainless Steel, 300 Series
Finish:
Passivated
Sheet Min.:
0.060
Hole Diameter:
0.213 +0.003 -0.000
A:
0.231 ±0.003
B:
0.281 ±0.005
L:
0.875 ±0.005
CL to Edge Min.:
0.22
E:
0.375 ±0.016
Part Number:
Type:
Unified
Thread Size:
#6-32
Material:
Stainless Steel, 300 Series
Finish:
Passivated
Sheet Min.:
0.060
Hole Diameter:
0.213 +0.003 -0.000
A:
0.231 ±0.003
B:
0.281 ±0.005
L:
0.125 ±0.005
CL to Edge Min.:
0.22
E:
FULL
Part Number:
Type:
Unified
Thread Size:
#6-32
Material:
Stainless Steel, 300 Series
Finish:
Passivated
Sheet Min.:
0.060
Hole Diameter:
0.213 +0.003 -0.000
A:
0.231 ±0.003
B:
0.281 ±0.005
L:
0.250 ±0.005
CL to Edge Min.:
0.22
E:
FULL
Part Number:
Type:
Metric
Thread Size:
M3 x 0.5
Material:
Steel
Finish:
Electro Tin
Sheet Min.:
1.53
Hole Diameter:
4.22 +0.08 -0.00
A:
4.68 ±0.08
B:
5.56 ±0.13
L:
10.00 ±0.13
CL to Edge Min.:
4.4
E:
FULL
Part Number:
Type:
Metric
Thread Size:
M3 x 0.5
Material:
Steel
Finish:
Electro Tin
Sheet Min.:
1.53
Hole Diameter:
4.22 +0.08 -0.00
A:
4.68 ±0.08
B:
5.56 ±0.13
L:
12.00 ±0.13
CL to Edge Min.:
4.4
E:
9.5 ±0.4
Part Number:
Type:
Metric
Thread Size:
M3 x 0.5
Material:
Steel
Finish:
Electro Tin
Sheet Min.:
1.53
Hole Diameter:
4.22 +0.08 -0.00
A:
4.68 ±0.08
B:
5.56 ±0.13
L:
14.00 ±0.13
CL to Edge Min.:
4.4
E:
9.5 ±0.4
Part Number:
Type:
Metric
Thread Size:
M3 x 0.5
Material:
Steel
Finish:
Electro Tin
Sheet Min.:
1.53
Hole Diameter:
4.22 +0.08 -0.00
A:
4.68 ±0.08
B:
5.56 ±0.13
L:
16.00 ±0.13
CL to Edge Min.:
4.4
E:
9.5 ±0.4
Part Number:
Type:
Metric
Thread Size:
M3 x 0.5
Material:
Steel
Finish:
Electro Tin
Sheet Min.:
1.53
Hole Diameter:
4.22 +0.08 -0.00
A:
4.68 ±0.08
B:
5.56 ±0.13
L:
3.00 ±0.13
CL to Edge Min.:
4.4
E:
FULL
Part Number:
Type:
Metric
Thread Size:
M3 x 0.5
Material:
Steel
Finish:
Electro Tin
Sheet Min.:
1.53
Hole Diameter:
4.22 +0.08 -0.00
A:
4.68 ±0.08
B:
5.56 ±0.13
L:
4.00 ±0.13
CL to Edge Min.:
4.4
E:
FULL
Part Number:
Type:
Metric
Thread Size:
M3 x 0.5
Material:
Steel
Finish:
Electro Tin
Sheet Min.:
1.53
Hole Diameter:
4.22 +0.08 -0.00
A:
4.68 ±0.08
B:
5.56 ±0.13
L:
6.00 ±0.13
CL to Edge Min.:
4.4
E:
FULL
Part Number:
Type:
Metric
Thread Size:
M3 x 0.5
Material:
Steel
Finish:
Electro Tin
Sheet Min.:
1.53
Hole Diameter:
4.22 +0.08 -0.00
A:
4.68 ±0.08
B:
5.56 ±0.13
L:
8.00 ±0.13
CL to Edge Min.:
4.4
E:
FULL
Part Number:
Type:
Metric
Thread Size:
M3 x 0.5
Material:
Stainless Steel, 300 Series
Finish:
Passivated
Sheet Min.:
1.53
Hole Diameter:
4.22 +0.08 -0.00
A:
4.68 ±0.08
B:
5.56 ±0.13
L:
10.00 ±0.13
CL to Edge Min.:
4.4
E:
FULL
Part Number:
Type:
Metric
Thread Size:
M3 x 0.5
Material:
Stainless Steel, 300 Series
Finish:
Passivated
Sheet Min.:
1.53
Hole Diameter:
4.22 +0.08 -0.00
A:
4.68 ±0.08
B:
5.56 ±0.13
L:
12.00 ±0.13
CL to Edge Min.:
4.4
E:
9.5 ±0.4
Part Number:
Type:
Metric
Thread Size:
M3 x 0.5
Material:
Stainless Steel, 300 Series
Finish:
Passivated
Sheet Min.:
1.53
Hole Diameter:
4.22 +0.08 -0.00
A:
4.68 ±0.08
B:
5.56 ±0.13
L:
14.00 ±0.13
CL to Edge Min.:
4.4
E:
9.5 ±0.4
Part Number:
Type:
Metric
Thread Size:
M3 x 0.5
Material:
Stainless Steel, 300 Series
Finish:
Passivated
Sheet Min.:
1.53
Hole Diameter:
4.22 +0.08 -0.00
A:
4.68 ±0.08
B:
5.56 ±0.13
L:
16.00 ±0.13
CL to Edge Min.:
4.4
E:
9.5 ±0.4
Part Number:
Type:
Metric
Thread Size:
M3 x 0.5
Material:
Stainless Steel, 300 Series
Finish:
Passivated
Sheet Min.:
1.53
Hole Diameter:
4.22 +0.08 -0.00
A:
4.68 ±0.08
B:
5.56 ±0.13
L:
3.00 ±0.13
CL to Edge Min.:
4.4
E:
FULL
Part Number:
Type:
Metric
Thread Size:
M3 x 0.5
Material:
Stainless Steel, 300 Series
Finish:
Passivated
Sheet Min.:
1.53
Hole Diameter:
4.22 +0.08 -0.00
A:
4.68 ±0.08
B:
5.56 ±0.13
L:
4.00 ±0.13
CL to Edge Min.:
4.4
E:
FULL
Part Number:
Type:
Metric
Thread Size:
M3 x 0.5
Material:
Stainless Steel, 300 Series
Finish:
Passivated
Sheet Min.:
1.53
Hole Diameter:
4.22 +0.08 -0.00
A:
4.68 ±0.08
B:
5.56 ±0.13
L:
6.00 ±0.13
CL to Edge Min.:
4.4
E:
FULL
Part Number:
Type:
Metric
Thread Size:
M3 x 0.5
Material:
Stainless Steel, 300 Series
Finish:
Passivated
Sheet Min.:
1.53
Hole Diameter:
4.22 +0.08 -0.00
A:
4.68 ±0.08
B:
5.56 ±0.13
L:
8.00 ±0.13
CL to Edge Min.:
4.4
E:
FULL
Part Number:
Type:
Unified
Thread Size:
Unthreaded
Material:
Steel
Thru Hole:
0.116 +0.004 -0.003
Finish:
Electro Tin
Sheet Min.:
0.060
Hole Diameter:
0.166 +0.003 -0.000
A:
0.184 ±0.003
B:
0.219 ±0.005
L:
0.375 ±0.005
CL to Edge Min.:
0.17
E:
N/A
Part Number:
Type:
Unified
Thread Size:
Unthreaded
Material:
Steel
Thru Hole:
0.116 +0.004 -0.003
Finish:
Electro Tin
Sheet Min.:
0.060
Hole Diameter:
0.166 +0.003 -0.000
A:
0.184 ±0.003
B:
0.219 ±0.005
L:
0.500 ±0.005
CL to Edge Min.:
0.17
E:
N/A
Part Number:
Type:
Unified
Thread Size:
Unthreaded
Material:
Steel
Thru Hole:
0.116 +0.004 -0.003
Finish:
Electro Tin
Sheet Min.:
0.060
Hole Diameter:
0.166 +0.003 -0.000
A:
0.184 ±0.003
B:
0.219 ±0.005
L:
0.625 ±0.005
CL to Edge Min.:
0.17
E:
N/A
Part Number:
Type:
Unified
Thread Size:
Unthreaded
Material:
Steel
Thru Hole:
0.116 +0.004 -0.003
Finish:
Electro Tin
Sheet Min.:
0.060
Hole Diameter:
0.166 +0.003 -0.000
A:
0.184 ±0.003
B:
0.219 ±0.005
L:
0.750 ±0.005
CL to Edge Min.:
0.17
E:
N/A
Part Number:
Type:
Unified
Thread Size:
Unthreaded
Material:
Steel
Thru Hole:
0.116 +0.004 -0.003
Finish:
Electro Tin
Sheet Min.:
0.060
Hole Diameter:
0.166 +0.003 -0.000
A:
0.184 ±0.003
B:
0.219 ±0.005
L:
0.125 ±0.005
CL to Edge Min.:
0.17
E:
N/A
Part Number:
Type:
Unified
Thread Size:
Unthreaded
Material:
Steel
Thru Hole:
0.116 +0.004 -0.003
Finish:
Electro Tin
Sheet Min.:
0.060
Hole Diameter:
0.166 +0.003 -0.000
A:
0.184 ±0.003
B:
0.219 ±0.005
L:
0.250 ±0.005
CL to Edge Min.:
0.17
E:
N/A
Part Number:
Type:
Unified
Thread Size:
Unthreaded
Material:
Steel
Thru Hole:
0.143 +0.004 -0.003
Finish:
Electro Tin
Sheet Min.:
0.060
Hole Diameter:
0.213 +0.003 -0.000
A:
0.231 ±0.003
B:
0.281 ±0.005
L:
0.375 ±0.005
CL to Edge Min.:
0.22
E:
N/A
Part Number:
Type:
Unified
Thread Size:
Unthreaded
Material:
Steel
Thru Hole:
0.143 +0.004 -0.003
Finish:
Electro Tin
Sheet Min.:
0.060
Hole Diameter:
0.213 +0.003 -0.000
A:
0.231 ±0.003
B:
0.281 ±0.005
L:
0.500 ±0.005
CL to Edge Min.:
0.22
E:
N/A
